Product description:

hydraulic cylinders are actuators that convert hydraulic energy into linear mechanical force. They have a compact structure, high output force, and smooth operation. They are the core components for performing actions such as pushing, pulling, lifting, and pressing in various mechanical and industrial systems, and are widely used in construction machinery, metallurgy, mining, shipping, and other fields.

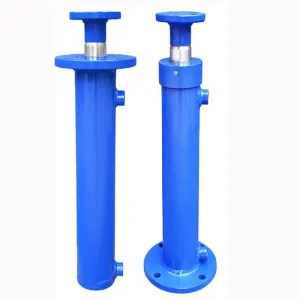

A Chassis telescopic cylinder is a specialized hydraulic actuator designed to provide extended linear motion within limited installation space. It is widely used in construction machinery, dump trucks, cranes, trailers, agricultural vehicles, and heavy-duty equipment where long stroke and compact design are essential. Mounted on the chassis or undercarriage, this cylinder enables lifting, lowering, and adjusting mechanical structures with high force and smooth motion.

Parameters:

Pictures:

Structure and Working Principle

A chassis telescopic cylinder consists of multiple nested stages (sleeves or tubes), each capable of extending sequentially through hydraulic pressure. The main components include the cylinder barrel, piston assembly, piston rods, seals, guide rings, and end caps. When hydraulic oil is pumped into the base chamber, the pressure extends the largest stage first, followed by the smaller ones, achieving a long total stroke within minimal retracted length.

When the hydraulic flow reverses, the stages retract smoothly into the base section, allowing compact storage and easy operation. This mechanism provides efficient and controlled motion, making the telescopic cylinder a vital component for chassis-mounted lifting and pushing systems.

Materials and Manufacturing Process

The cylinder body and stages are made from high-strength alloy steel or seamless precision tubes, ensuring excellent load-bearing capacity and durability. The inner surfaces are precision honed to minimize friction and wear on seals. The piston rods are hard chrome plated or QPQ treated, providing superior corrosion and abrasion resistance.

Using advanced CNC machining, automated welding, and induction heat treatment, each part is manufactured with tight dimensional tolerances. The surface treatment ensures smooth operation, long service life, and resistance to harsh environmental conditions. Every cylinder undergoes thorough cleaning and assembly in a dust-free environment to guarantee hydraulic system reliability.

Key Features and Advantages

Multi-Stage Telescopic Design: Offers long stroke lengths with compact retracted size, maximizing space utilization.

High Working Pressure: Capable of operating under pressures up to 35 MPa or higher for powerful lifting and pushing performance.

Superior Sealing Performance: Equipped with high-quality seals from brands like NOK, Hallite, or Parker, preventing oil leakage and contamination.

Robust and Durable Construction: Made from premium materials with hardened surfaces for excellent wear and corrosion resistance.

Smooth and Stable Operation: Optimized hydraulic design ensures precise motion control and minimal vibration.

Customizable Design: Available in various bore sizes, stages, mounting configurations, and stroke lengths to meet specific chassis system requirements.

Easy Maintenance: Modular design allows for quick inspection, seal replacement, and simple maintenance procedures.

Working principle of hydraulic cylinder:

Applications:

The hydraulic cylinder is an energy conversion device that converts hydraulic energy into mechanical energy. It is the core executive component in the hydraulic system. The hydraulic cylinder uses hydraulic oil to drive the piston to move, converting hydraulic energy into linear reciprocating motion. When the hydraulic oil enters the cylinder barrel, it pushes the piston rod to extend or retract, completing the predetermined action. The direction and speed of its movement are regulated by the hydraulic control system. The hydraulic cylinder consists of a cylinder barrel, cylinder cover, piston and piston rod, sealing device, and buffering device. According to its structure, it can be classified as piston type, plunger type, multi-stage telescopic sleeve type, and gear rack type. Hydraulic cylinders are widely used in machine tools, construction machinery, vehicles, and other fields, featuring a simple structure and smooth movement.

The chassis telescopic cylinder is widely used in:

Dump trucks and tipper vehicles – for lifting and tilting truck bodies during unloading operations.

Cranes and lifting equipment – to extend and retract booms or outriggers.

Agricultural and forestry machinery – for steering, lifting, or adjusting implements.

Trailers and transport vehicles – for chassis stabilization and hydraulic suspension systems.

Construction and mining equipment – to operate chassis-mounted arms, pushers, or supports.

In all these applications, the telescopic cylinder ensures powerful, smooth, and safe movement, improving overall machine performance and efficiency.

Quality Control and Testing

Each chassis telescopic cylinder undergoes strict quality inspection and hydraulic testing before delivery. Tests include:

Pressure resistance and leakage testing

Dimensional and surface finish inspection

Fatigue and endurance performance testing

Coating adhesion and corrosion resistance verification

These comprehensive tests ensure long-term reliability, safety, and performance in extreme operating environments.
