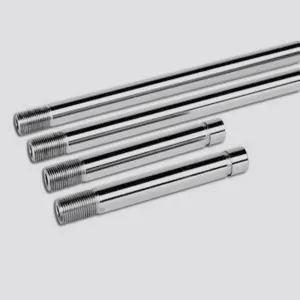

Product description:

The piston rod is a connecting component that supports the piston in performing work. It is mostly used in oil cylinders and air cylinders as motion execution components and is a frequently moving and highly technical motion component. Taking the hydraulic cylinder as an example, it is composed of the cylinder barrel, piston rod (oil Cylinder rod), piston, and end cover. The quality of its processing directly affects the lifespan and reliability of the entire product. The processing requirements for the piston rod are high. Its surface roughness should be within the range of Ra0.4 to 0.8 μm, and strict requirements are imposed on coaxiality and wear resistance.

A Precision piston rod is a highly engineered mechanical component used in hydraulic and pneumatic cylinders, automation systems, and industrial machinery. It serves as the main connecting element between the piston and the external mechanism, transmitting force and motion with extreme accuracy. The precision piston rod is characterized by its superior dimensional accuracy, fine surface finish, and excellent mechanical properties, which ensure smooth operation, reduced wear, and long service life in high-performance applications.

Parameter：

Pictures：

Material and Construction

Precision piston rods are typically made from high-quality carbon steel (AISI 1045, CK45), alloy steel (AISI 4140, 42CrMo4), or stainless steel (AISI 304, 316L). These materials are carefully selected for their high tensile strength, hardness, and resistance to bending and fatigue. Depending on the working environment, different materials and coatings can be chosen to ensure optimal corrosion resistance and durability.

The outer surface of the precision piston rod is usually treated with hard chrome plating or nickel plating, forming a dense, wear-resistant layer that enhances surface hardness and prevents corrosion. Advanced centerless grinding, mirror polishing, and precision straightening technologies are used to achieve extremely tight tolerances and surface roughness values as low as Ra ≤ 0.2 μm, meeting the stringent requirements of modern hydraulic and pneumatic systems.

Manufacturing Process

The production of precision piston rods follows a series of rigorous, controlled steps to ensure accuracy and quality:

Material Preparation: Selection of high-quality steel bars with precise chemical composition and uniform grain structure.

Heat Treatment: Quenching and tempering improve mechanical strength, toughness, and fatigue resistance.

Centerless Grinding: Multiple grinding stages achieve perfect roundness, straightness, and dimensional precision.

Hard Chrome Plating: A 20–30 μm chrome layer is applied for superior hardness (HRC 60–65) and corrosion resistance.

Polishing: Mirror-like surface finish reduces friction and ensures seal longevity.

Precision Inspection: Each rod undergoes strict testing for straightness, diameter tolerance, surface finish, hardness, and coating thickness.

Key Features and Advantages

Exceptional Dimensional Accuracy: Guaranteed precision tolerances for consistent performance in high-speed applications.

Ultra-Smooth Surface Finish: Reduces seal wear and friction losses, ensuring efficient motion control.

High Strength and Stability: Withstands high-pressure loads and dynamic stresses.

Corrosion and Wear Resistance: Chrome or nickel plating provides protection in harsh environments.

Fatigue and Impact Resistance: Heat-treated structure ensures long-term durability.

Customizable Options: Available in various diameters, lengths, and coatings according to customer requirements.

Production process of the piston rod:

Applications:

The piston rod is a connecting component that supports the piston in performing work. It is mostly used in oil cylinders and air cylinders as motion execution components and is a frequently moving and highly technical motion component. Taking the hydraulic cylinder as an example, it is composed of the cylinder barrel, piston rod (oil cylinder rod), piston, and end cover. The quality of its processing directly affects the lifespan and reliability of the entire product. The processing requirements for the piston rod are high. Its surface roughness should be within the range of Ra0.4 to 0.8 μm, and strict requirements are imposed on coaxiality and wear resistance.

Precision piston rods are essential in industries that require accurate and stable linear motion, such as:

Hydraulic cylinders for construction and industrial equipment

Pneumatic cylinders in automation and robotics

Injection molding machines and industrial presses

Material handling systems and conveyor automation

Automotive shock absorbers and steering mechanisms

Marine, aerospace, and defense machinery requiring high precision and corrosion resistance

These rods are designed to deliver consistent motion, minimal friction, and reliable performance even under extreme operating conditions. Their accuracy and strength make them indispensable in precision engineering and modern fluid power systems.

Company profile:

Since its establishment in 2014, Wuxi Hengxin Zhicheng Co., Ltd. has rapidly grown into a leading enterprise in the steel manufacturing industry. We focus on the research, production and sales of seamless steel pipes, special-shaped steel pipes and hydraulic cylinders, and are committed to providing customers with high-quality, customizable products that fully meet diverse application needs.

Our products are exported to global markets such as the Middle East, South America, Africa, and Southeast Asia, and are highly trusted by large purchasers and customers in the steel industry. We always prioritize quality, reliability and customer service, and attach great importance to establishing long-term and stable cooperative relationships with customers. We provide each customer with tailor-made solutions.

We continuously promote technological innovation and improve service capabilities and production efficiency. Through an efficient online platform, you can browse our best-selling products at any time and communicate with the sales and support teams in real time to conveniently obtain the information you need. We sincerely invite partners from all countries to visit, exchange and provide guidance, and jointly explore more possible cooperation opportunities!

Certification:

Packaging and Transportation:

【Package standard】

We use steel bands to tightly package the products into hexagonal bundles. The structure is stable and not prone to deformation. Each bundle is equipped with two high-strength nylon straps to ensure the safety and convenience of the lifting operation.

To meet various maritime transportation needs, we offer a range of customized packaging options, including full coverage with oilcloth, moisture-proof wooden boxes, and high-strength protective frame packaging, to ensure the maximum safety of goods during transportation.

【Guarantee for transportation】

We offer 20-foot and 40-foot standard container transportation services. Each container can carry up to 25 tons of goods and we can accept trial orders with a minimum of 5 tons. This allows for flexible adaptation to your purchasing scale. All packaging complies with maritime shipping standards to ensure that the goods are delivered to the destination efficiently and safely.

Why us?

We focus on the research, development, production and sales of seamless steel pipes, Special-shaped steel pipes and hydraulic cylinders. We have a complete production chain and an advanced equipment system, including piercing machines, cold drawing machines, hot rolling machines, high-precision flaw detection and testing equipment. The company has passed multiple authoritative certifications such as ISO9001, API, SGS, CCS, DNV, ABS, CE, RoHS, etc., ensuring that each product complies with international standards. We are committed to providing customers with high-quality, customizable solutions to meet diverse application needs.

Relying on our own built processing base and modern workshops, combined with multiple branches and storage centers across the country, we have achieved sufficient inventory and efficient logistics coordination, significantly shortening the delivery cycle and ensuring the rapid delivery of orders.

We have established a complete service and support system. After the order is signed, the professional after-sales team can provide timely and safe on-site guidance and technical support to ensure that customers are at ease throughout the process from procurement to use.

FAQ：

1. Do you support customized design and production?

Sure. We have a professional engineering team that can conduct customized design and production with special sizes, control systems or OEM according to your requirements.

2. How fast can you deliver?

In stock sizes, it takes 3-5 days. For customized sizes, it takes 30-35 days.

3. What payment methods do you support?

We support TT payment. Generally, 30% to 50% of the payment is made in advance, and the remaining amount is paid before shipment.

4. Can you provide material certification (MTC)?

Yes, we will provide MTC to you after production is completed to ensure that the material quality meets the standards.

5. What is the minimum order quantity?

Generally, we accept trial orders. The minimum order quantity is 1-3 tons, which can be determined according to different products.
