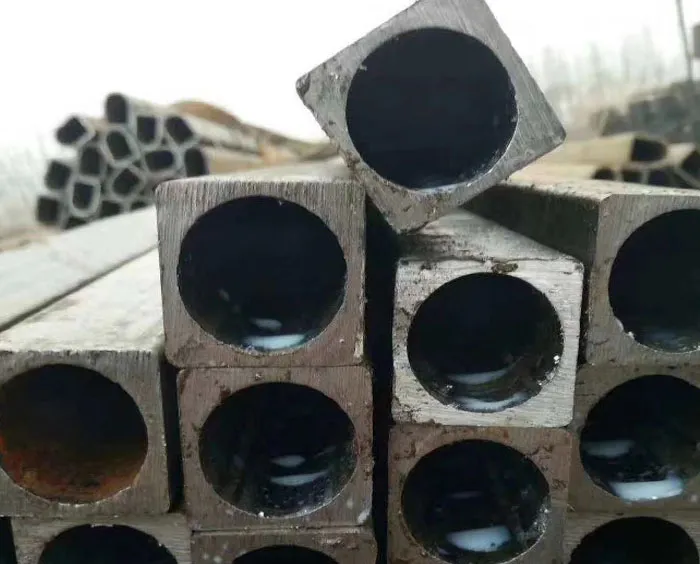

Irregular pipes refer to pipes with non-circular cross-sections, widely used in fields such as mechanical manufacturing, construction engineering, and automotive industry.

Compared to ordinary round pipes, Special-Shaped Pipes have the following significant advantages:

1. Strong structural adaptability: The cross-section can be designed as square, rectangular, triangular, elliptical, groove shaped, etc., which can directly match the structural requirements of equipment or components, reducing connection links and material waste.

2. Mechanical performance optimization: Under the same cross-sectional area, some irregular pipes (such as square pipes) have higher bending and torsional strength, and can withstand more complex loads (such as supporting structures in buildings).

3. Space and cost savings: No additional processing is required to adapt to non-circular assembly spaces, reducing installation difficulty and labor costs.

Requirements and characteristic specifications for Special-Shaped Pipes

Irregular pipes refer to pipes with non-circular cross-sections, widely used in fields such as mechanical manufacturing, construction engineering, and automotive industry. The following provides a detailed explanation from four aspects: chemical requirements, advantages, heat treatment requirements, and tensile strength:

1、 Chemical requirements

The chemical composition of special-shaped pipes needs to be determined based on the material (such as carbon steel, alloy steel, stainless steel, etc.) and application scenarios to ensure their mechanical properties and corrosion resistance. The typical chemical requirements for common materials are as follows:

·Carbon steel special-shaped pipe:

Carbon (C): 0.12% -0.25% (low carbon steel, ensuring plasticity and weldability); 0.25% -0.60% (medium carbon steel, balancing strength and toughness).

Manganese (Mn): 0.30% -1.65% (improves strength and processability).

Silicon (Si): ≤ 0.35% (deoxidizer to avoid brittleness).

Phosphorus (P) and sulfur (S): ≤ 0.035% (harmful elements that need to be strictly controlled to reduce brittleness and hot cracking).

·Stainless steel special-shaped pipe (such as 304 stainless steel):

Chromium (Cr): 18.0% -20.0% (providing corrosion resistance).

Nickel (Ni): 8.0% -11.0% (enhances corrosion resistance and toughness).

Carbon (C): ≤ 0.08% (reduces intergranular corrosion risk).

Other: May contain small amounts of molybdenum (Mo), titanium (Ti) and other elements to further enhance performance.

·Alloy structural steel special-shaped pipe (such as 40Cr):

Chromium (Cr): 0.80% -1.10% (improves hardenability and strength).

Carbon (C): 0.37% -0.44%, Manganese (Mn): 0.50% -0.80%.

2、 Advantages

Compared to ordinary round pipes, special-shaped pipes have the following significant advantages:

1. Strong structural adaptability: The cross-section can be designed as square, rectangular, triangular, elliptical, groove shaped, etc., which can directly match the structural requirements of equipment or components, reducing connection links and material waste.

2. Mechanical performance optimization: Under the same cross-sectional area, some irregular pipes (such as square pipes) have higher bending and torsional strength, and can withstand more complex loads (such as supporting structures in buildings).

3. Space and cost savings: No additional processing is required to adapt to non-circular assembly spaces, reducing installation difficulty and labor costs.

4. Combining aesthetics and functionality: commonly used in the field of decoration (such as irregular stainless steel handrails), it combines structural support and visual effects.

5. High material utilization rate: By precise rolling or welding forming, it reduces subsequent cutting processing and improves material utilization rate.

3、 Heat treatment requirements

Heat treatment can improve the mechanical properties (such as strength, toughness) and processability of special-shaped pipes, and specific requirements vary depending on the material and application:

·Annealing treatment:

Applicable scenarios: Stress relief for low carbon steel, softening of stainless steel for processing.

Process: Heat to 700-900 ℃ (carbon steel) or 800-1050 ℃ (stainless steel), keep warm and slowly cool to reduce hardness and improve plasticity.

·Normalization treatment:

Applicable scenarios: Refine grain size and uniform structure of medium carbon steel.

Process: Heat to 30-50 ℃ above Ac3 (hypoeutectoid steel) or Accm (hypereutectoid steel), keep warm, and then air cool to improve strength and toughness.

·Quenching+tempering (quenching and tempering treatment):

Applicable scenarios: Alloy structural steel requires high strength and wear resistance (such as mechanical transmission components).

Process: Quenching (heated to 820-860 ℃, water or oil cooled)+tempering (500-650 ℃, air cooled) to achieve a good combination of strength and toughness.

·Timeliness processing:

Applicable scenarios: Aluminum alloy special-shaped pipes (non steel materials), which promote the precipitation of strengthening phases and improve hardness and strength by heating (120-180 ℃).

4、 Tensile strength

Tensile strength is a key mechanical indicator of special-shaped pipes, which depends on the material and heat treatment state. The common ranges are as follows:
