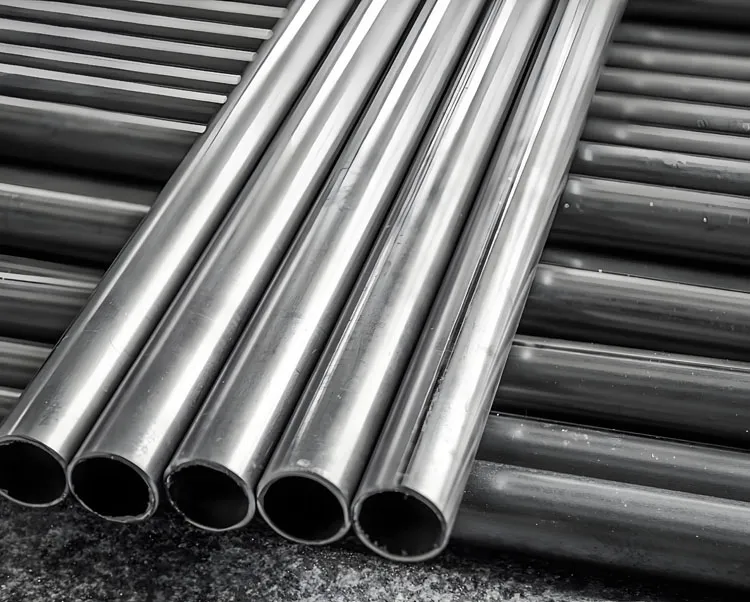

20Cr precision steel pipe represents a cornerstone of modern precision engineering, offering a unique combination of medium carbon content, chromium enhancement, and exceptional dimensional accuracy. This alloy is meticulously engineered to provide superior strength, toughness, and hardenability compared to standard carbon steels, making it indispensable in high-performance mechanical and automotive applications. This document delves into the intricate details of 20Cr steel, exploring its chemical identity, mechanical properties, manufacturing processes for precision tubing, diverse industrial applications, and the significant advantages it offers over alternative materials.

　　1. Introduction to 20cr precision steel pipe

　　Precision steel pipes are defined by their exceptionally tight tolerances on outer diameter (OD), inner diameter (ID), wall thickness, and surface finish. They are often cold-drawn or cold-rolled to achieve these exacting specifications, eliminating the need for secondary machining in many applications. Among the various grades used for this purpose, 20Cr stands out as a widely specified and versatile low-carbon chromium alloy steel.

　　The designation "20Cr" follows a common alloy steel naming system:

　　"20" indicates a carbon content of approximately 0.20%.

　　"Cr" denotes the presence of Chromium as the primary alloying element, typically around 0.80% to 1.10%.

　　This specific chemical composition places 20Cr in a performance sweet spot. The carbon content is sufficient to allow for effective strengthening through heat treatment (like carburizing or quenching and tempering), while the chromium addition significantly enhances hardenability, wear resistance, and mechanical properties. When transformed into a precision pipe, 20Cr becomes a pre-finished component ready for demanding duties in power transmission, fluid systems, and structural frameworks.

　　Metallurgical Behavior:

　　The synergy between carbon and chromium is crucial. Chromium atoms slow the transformation of austenite to softer phases (like ferrite and pearlite) during cooling. This "hardenability" effect means that a 20Cr steel component can be through-hardened to a greater depth than a plain carbon steel like 1020, resulting in a more uniformly strong part with a tough core and a hard, wear-resistant surface—especially after case carburizing.

　　2. Mechanical Properties

　　The mechanical properties of 20Cr precision pipe can vary significantly based on its heat treatment condition. It is commonly supplied in the normalized or annealed condition for optimal machinability and then heat-treated by the end-user for final application.

　　Properties in Annealed/Normalized Condition:

　　Tensile Strength: 500 - 700 MPa

　　Yield Strength (0.2% Offset): 350 - 550 MPa

　　Elongation at Break: ≥ 20%

　　Hardness: ~ 170 HB (Brinell)

　　Impact Toughness: Good

　　Properties After Quenching and Tempering:

　　After austenitizing, quenching in oil or water, and tempering at an appropriate temperature, the properties can be greatly enhanced:

　　Tensile Strength: 800 - 1000+ MPa

　　Yield Strength: 600 - 800+ MPa

　　Hardness: 25 - 35 HRC (Rockwell C) (Varies with tempering temperature)

　　Impact Toughness: Maintains good toughness at these higher strength levels.

　　Properties After Case Carburizing:

　　This is the most common treatment for 20Cr. The part is carburized to increase surface carbon, then quenched and tempered.

　　Surface Hardness: 58 - 63 HRC (Extremely hard and wear-resistant)

　　Core Hardness: 25 - 40 HRC (Tough and ductile to absorb impact loads)

　　Case Depth: Typically 0.5 - 2.0 mm, depending on requirements.

　　This creates a "hard shell, tough core" component ideal for gears and bearings.

　　3. Manufacturing Process of 20Cr Precision Steel Pipe

　　The journey from raw steel to precision pipe is a multi-step process ensuring dimensional perfection and metallurgical integrity.

　　Raw Material Selection: High-quality billets of 20Cr alloy steel are selected and inspected for chemical composition and purity.

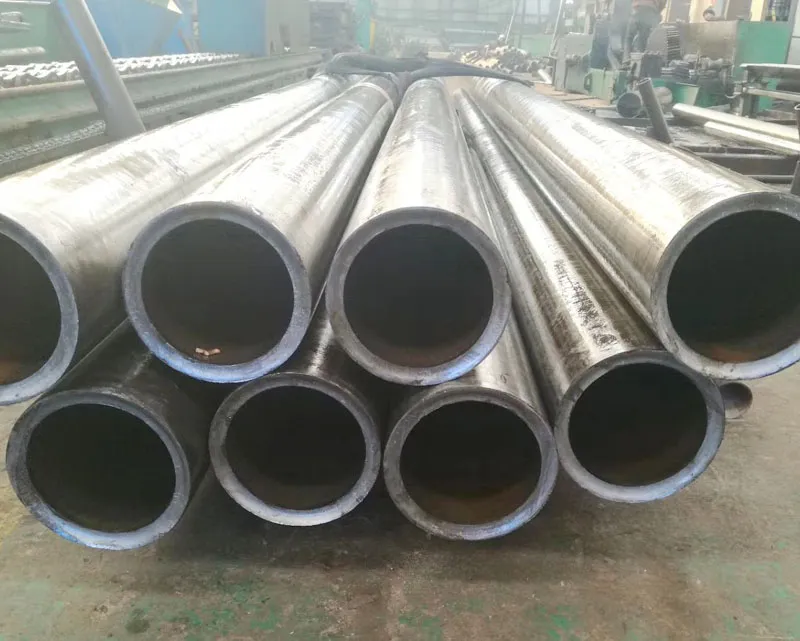

　　Hot Rolling or Extrusion: The billet is heated to a high temperature (around 1200°C) and formed into a hollow shell or a rough-sized tube through a piercing mill (like the Mannesmann process) or an extrusion press. This creates a "mother tube."

　　Annealing/Pickling: The hot-rolled tube is annealed to soften it and relieve internal stresses. It is then pickled in an acid solution to remove the scale (iron oxide) formed during hot working.

　　Cold Drawing (The Core Precision Process): This is where the tube achieves its "precision" attributes.

　　The annealed and pickled tube is pointed at one end.

　　It is pulled (drawn) through a hardened die and over a mandrel. This process simultaneously reduces the outer diameter, inner diameter, and wall thickness.

　　Benefits: Cold working drastically improves surface finish, dimensional accuracy (tolerances can be held within ±0.05mm), and mechanical strength via strain hardening.

　　The process may be repeated multiple times with intermediate annealing steps to prevent cracking and achieve the final desired size and properties.

　　Cold Rolling: An alternative or complementary process to drawing, often using a pilger mill. It offers excellent control over wall thickness and is suitable for larger diameters and thinner walls.

　　4.Finishing Operations:

　　Straightening: Roller straightening ensures perfect straightness.

　　Cutting: Pipes are cut to precise lengths.

　　Heat Treatment: Final annealing, normalizing, or quenching and tempering is performed to achieve the specified mechanical properties.

　　Surface Finishing: Polishing, grinding, or sandblasting may be applied for specific surface roughness (e.g., Ra < 0.8 µm for hydraulic applications).

　　Nondestructive Testing (NDT): Critical for quality assurance. Includes eddy current testing, ultrasonic testing, or hydrostatic testing to detect any internal or external defects.

　　Inspection & Packaging: Final inspection of dimensions, surface quality, and paperwork before protective packaging for shipment.
