In the realm of modern industrial manufacturing, the demand for materials that offer an exceptional blend of strength, durability, precision, and machinability is ever-increasing. Among the front-runners meeting these stringent requirements is 40Cr precision steel pipe. This alloy steel, renowned for its excellent comprehensive mechanical properties after heat treatment, has become a cornerstone material across diverse high-stress sectors, including automotive, machinery, hydraulics, and aerospace. This in-depth article explores the intricacies of 40cr precision steel pipe, delving into its chemical composition, metallurgical characteristics, manufacturing processes, key properties, myriad applications, and its standing against competing materials.

1. Introduction to 40cr precision tube

40Cr is a standard Chinese grade of alloy structural steel, classified under the GB/T 3077 standard. The nomenclature "40Cr" provides immediate insight into its chemical composition: the "40" indicates a carbon content of approximately 0.40%, and "Cr" signifies the primary alloying element, Chromium, typically present at around 0.80% to 1.10%.

This specific formulation places 40Cr in the category of medium-carbon low-alloy steel. The combination of carbon and chromium, often enhanced by other trace elements, bestows upon 40Cr a superior performance profile compared to plain carbon steels like 1045. It is specifically designed to be used in a quenched and tempered condition, which unlocks its full potential for high-strength applications.

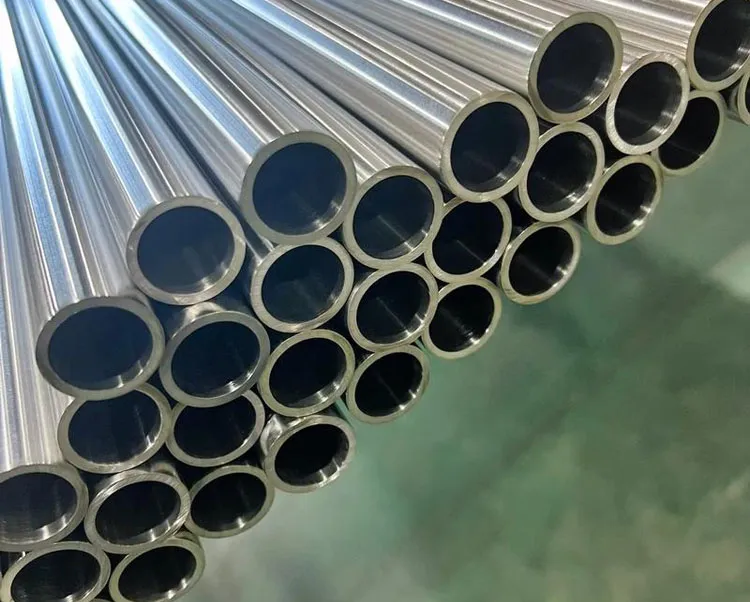

Precision steel pipe, also known as seamless precision tubing, refers to cold-drawn or cold-rolled seamless tubing manufactured to extremely tight dimensional tolerances, excellent surface finish, and superior mechanical properties uniformity. When the base material is 40Cr alloy steel, the result is a component that is not only dimensionally accurate but also possesses the inherent strength and toughness of the alloy.

2. Chemical Composition and Metallurgy

The performance of any steel is fundamentally dictated by its chemical composition. The precise formulation of 40Cr is crucial to its behavior during heat treatment and its final properties.

Typical Chemical Composition (GB/T 3077 Standard):

Carbon (C): 0.37% - 0.44%

Silicon (Si): 0.17% - 0.37%

Manganese (Mn): 0.50% - 0.80%

Chromium (Cr): 0.80% - 1.10%

Nickel (Ni): ≤ 0.30%

Copper (Cu): ≤ 0.30%

Sulfur (S): ≤ 0.035%

Phosphorus (P): ≤ 0.035%

Role of Key Alloying Elements:

Carbon (C): The primary hardening element. It forms carbides with iron and other alloying elements. The 0.40% content provides a robust foundation for strength and hardness through the formation of martensite during quenching. It directly contributes to tensile strength but must be balanced to maintain adequate toughness.

Chromium (Cr): The signature alloying element. Chromium serves multiple critical functions:

Hardenability Enhancer: It significantly increases the depth to which the steel can be hardened during quenching. This allows for the through-hardening of larger cross-sections, ensuring consistent mechanical properties throughout the part, which is vital for precision pipes.

Carbide Formation: It forms hard, stable carbides (e.g., Cr7C3, Cr23C6), which contribute to wear resistance and strength.

Corrosion Resistance: It offers a slight improvement in corrosion resistance compared to carbon steels, though it is not considered a stainless steel.

Manganese (Mn): Aids in deoxidizing the steel during production and enhances hardenability, though to a lesser extent than chromium. It also helps mitigate the brittleness caused by sulfur.

Silicon (Si): Primarily acts as a deoxidizer and strengthens the ferrite phase, contributing to yield strength.

The metallurgy of 40Cr revolves around its response to heat treatment. The goal is to achieve a tempered martensite microstructure. This structure provides an optimal balance of high strength, good ductility, and notable toughness.

3. Manufacturing Process of 40Cr Precision Steel Pipe

The journey from raw steel to a finished 40Cr precision pipe is a multi-stage process that ensures both dimensional accuracy and superior mechanical properties.

1. Pipe Making: The Seamless Process (Hot Rolling):

The process begins with the creation of a seamless hollow shell. The most common method is the mandrel mill process.

A solid round billet of 40Cr steel is heated to a high temperature (around 1200°C).

A piercing plug is forced through the center of the rotating billet to create a hollow "shell" or "bloom."

This shell is then elongated and rolled over a mandrel bar in a mandrel mill to achieve a longer, thinner-walled tube with a rough diameter and wall thickness.

The hot-finished seamless tube is then cut to length and cooled.
